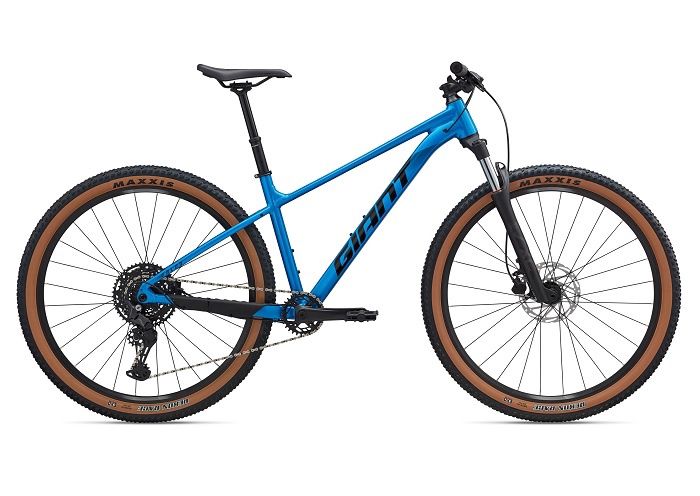

2025 GIANT TALON 29ER 1

SPECIFICATIONS

Frame
ALUXX-grade aluminum, disc

Fork
SXC32-3 RL, coil spring, QR, alloy steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29)

Shock
N/A

Handlebar
Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29)

Grips
Giant Sole-O

Stem
Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29)

Seatpost
Giant Contact Switch Core, 30.9 XS: 100x350mm (27.5) S: 100x350mm (27.5) / 100x350mm (29)

Saddle
Giant ErgoContact Trail

Pedals
MTB caged

Shifters
Shimano CUES SL-6000, 1x10

Front Derailleur
N/A

Rear Derailleur
Shimano CUES RD-U6000

Brakes
Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm

Brake Levers
Tektro HDC M275

Cassette
Shimano CUES, CS-LG300, 11x48

Chain
KMC X-11

Crankset
ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29)

Bottom Bracket
cartridge

Rims
Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width

Hubs
alloy, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle

Spokes
stainless, 14g

Tires
Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead

Extras
2.4" max tire size

Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
