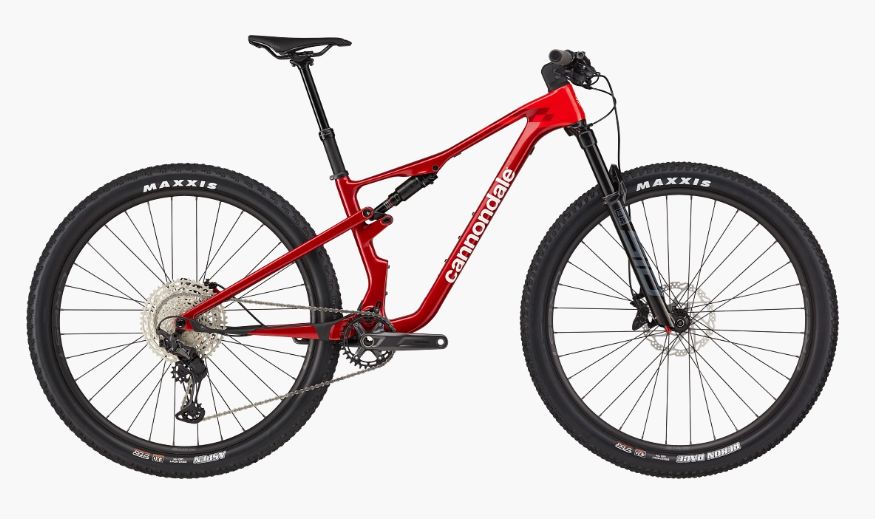

CAN26 SCALPEL CRB 4

Frameset

• Frame

  Scalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native
• Fork

  RockShox SID, 120mm, DebonAir, 15x110mm thru-axle, tapered steerer, 44mm offset, TwistLoc remote dual lockout
• Headset

  Acros ICR
• Rear Shock

  RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45, TwistLoc remote dual lockout

Drivetrain

• Rear Derailleur

  Shimano Deore 6100
• Shifters

  Shimano Deore 6100, 12-speed
• Chain

  Shimano Deore, 12-speed
• Crank

  Shimano M5121, 32T
• Rear Cogs

  Shimano Deore, 10-51, 12-speed
• Bottom Bracket

  Shimano BSA 73mm

Brakes

• Brakes

  Shimano MT501, hydraulic disc, 180/160mm RT10 rotors
• Brake Levers

  Shimano MT501 hydraulic disc

Wheels

• Rims

  Stan's NoTubes Crest S2, 32h, tubeless ready
• Spokes

  DT Swiss Champion
• Tire Size

  2.4
• Wheel Size

  29
• Hubs

  (F) Shimano TC-500, 15x110mm thru-axle / (R) Shimano MT410B, 12x148mm thru-axle
• Tires

  (F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready

Components

• Handlebar

  Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
• Stem

  Cannondale C1 Conceal, Alloy, 31.8, -6°
• Grips

  RockShox Smooth Silicone
• Saddle

  Prologo Dimension NDR, STN rails
• Seatpost

  Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
