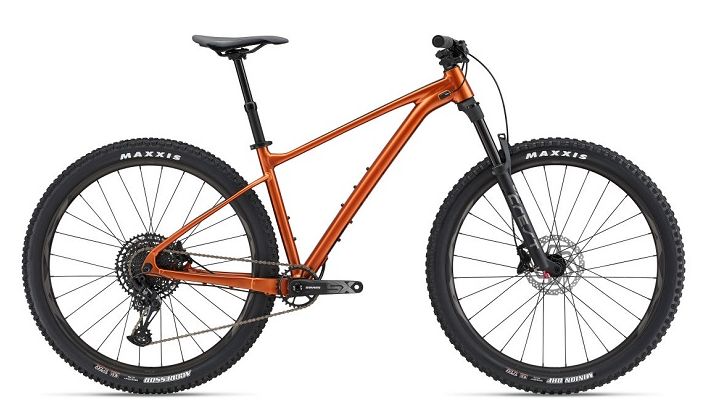

GIANT FATHOM 29ER 1

SPECIFICATIONS

Frame
ALUXX SL-Grade Aluminum

Fork
Giant Crest 34 SL RCL, 130mm, 44mm offset, Boost 15x110

Shock
N/A

Handlebar
Giant Contact TR35, 780x35mm

Grips
Giant Sole-O

Stem
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm

Seatpost
Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 450mm

Saddle
Giant Romero

Pedals
platform [GC,GT]

Shifters
SRAM SX Eagle, 1x12

Front Derailleur
N/A

Rear Derailleur
SRAM NX Eagle

Brakes
Shimano BR-MT420/410, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm

Brake Levers
Shimano BR-MT401

Cassette
SRAM SX Eagle, 11x50

Chain
SRAM SX Eagle

Crankset
SRAM SX Eagle, 30t S:165mm, M:170mm, L:170mm, XL:170mm

Bottom Bracket
SRAM DUB, press fit

Rims
Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width

Hubs
alloy, sealed

Spokes
stainless

Tires
[F] Maxxis Minion DHF, 29x2.5 WT, EXO/TR[R] Maxxis Aggressor, 29x2.5 WT, foldable, EXO/T

Extras
tubeless prepared, 2.5" max tire size, 32t max chainring size

Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
