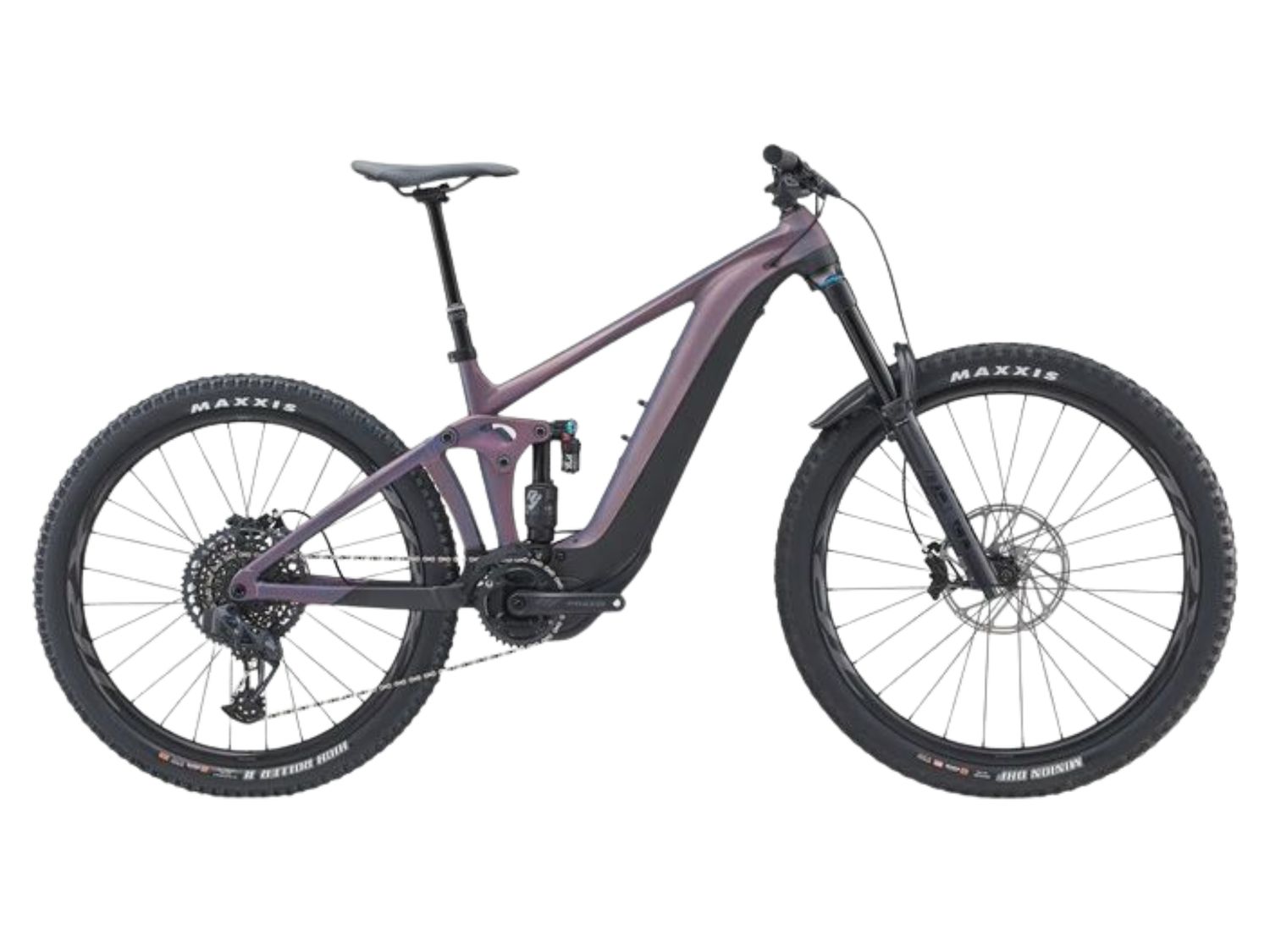

GIANT REIGN E+1

SPECIFICATIONS

motor
SyncDrive Pro, 85Nm, powered by Yamaha

controller
RideControl GO integrated in TT, RideControl Ergo 3

display
Wireless display compatible

battery
EnergyPak Smart 800, EnergyPak Plus range extender compatible (exclude S Size)

sizes
S, M, L, XL

frame
ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger

fork
Fox 38 Float Performance Elite, 29er, 170mm, GRIP2 VVC Damper, Boost 110x15 Kabolt floating axle, with fender, e-Bike optimized

shock
Fox Float X2 Performance Elite, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned

handlebar
Giant Contact SL Trail, 35x800mm

grips
Giant Tactal Pro-E, single lock-on

stem
Giant Contact SL 35

seatpost
Rad+ travel adjust dropper, dropper, 30,9mm (S:100~140mm, M:140~170mm, L/XL:170~200mm)

saddle
Giant Romero Trail

pedals
Flat pedals

shifters
SRAM AXS POD controller

front derailleur
MRP 1X HD2 custom co-molded chain guide

rear derailleur
SRAM GX Eagle NGD

brakes
SRAM Code R, hydraulic disc, 220mm[F] /200mm[R]

brake levers
SRAM Code R

cassette
SRAM GX, 10-52T, 12-speed

chain
SRAM GX Eagle PowerLock

crankset
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165)

rims
TRX 2 Hookless Clincher, 29in [F] / 27.5in [R], 30mm inner width

hubs
TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F], 148 x 12 [R] Thru Axle

tires
Maxxis Minion DHF 29x2.6in foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5x2.5in foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]

extras
Tubeless kit (liquid, valves, levers, manual, tool)

lighting
-

lock
Torx 25 Battery Lock with built-in Torque limiter

carrier
-

weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
