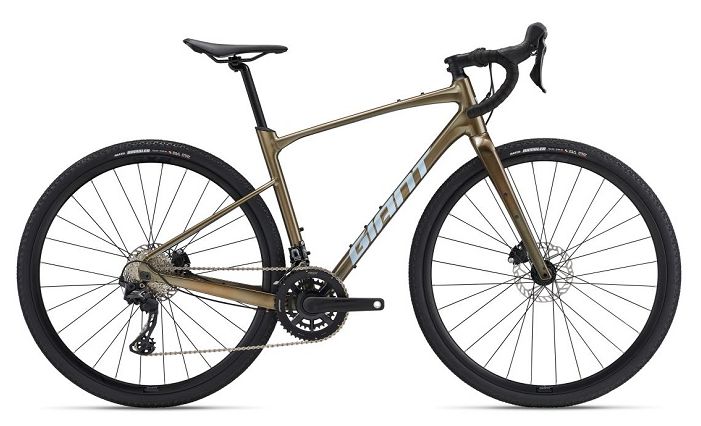

GIANT REVOLT 0

SPECIFICATIONS

Frame
ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout

Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Shock
N/A

Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips
cork tape with gel

Stem
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost
Giant D-Fuse, alloy, 14mm offset

Saddle
Giant Approach

Pedals
N/A

Shifters
Shimano GRX RX-610, 2x12

Front Derailleur
Shimano GRX RX-820

Rear Derailleur
Shimano GRX RX-820

Brakes
Shimano BR-RX410 HRD, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers
Shimano GRX RX-610 hydraulic

Cassette
Shimano 105, 11x34

Chain
KMC X12L-1

Crankset
FSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket
FSA Mega EXO

Rims
Giant S-X2 Disc wheelset, alloy

Hubs
Giant alloy, 12mm thru-axle

Spokes
stainless

Tires
Maxxis Rambler/Ravager, 700x40c, tubeless

Extras
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
