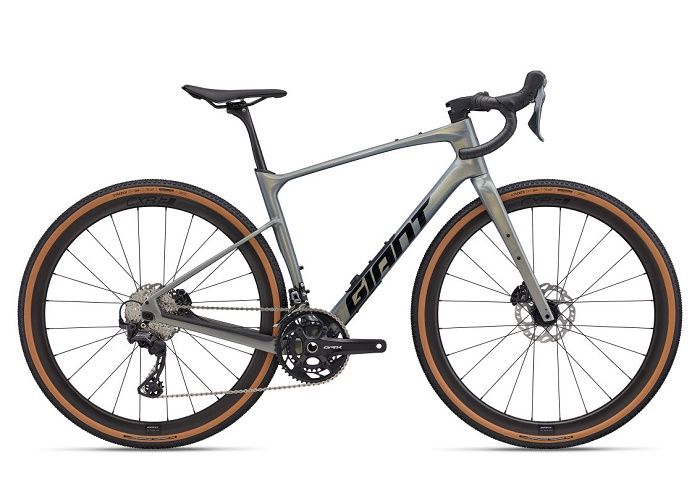

GIANT REVOLT ADV 0 (2025)

SPECIFICATIONS

Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips
Stratus Lite 3.0

Stem
Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost
Giant D-Fuse SL, composite, -5/+15mm offset

Saddle
Giant Approach

Shifters
Shimano GRX RX-820, 2x12

Front Derailleur
Shimano GRX RX-820

Rear Derailleur
Shimano GRX RX-820

Brakes
Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm

Brake Levers
Shimano GRX RX-820 hydraulic

Cassette
Shimano CS-HG710, 12-speed, 11x36

Chain
KMC X12L-1

Crankset
Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket
Shimano, press fit

Rims
Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm

Hubs
[F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle

Spokes
Sapim Sprint

Tires
CADEX GX, 700x40c, tubeless

Extras
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag

Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
