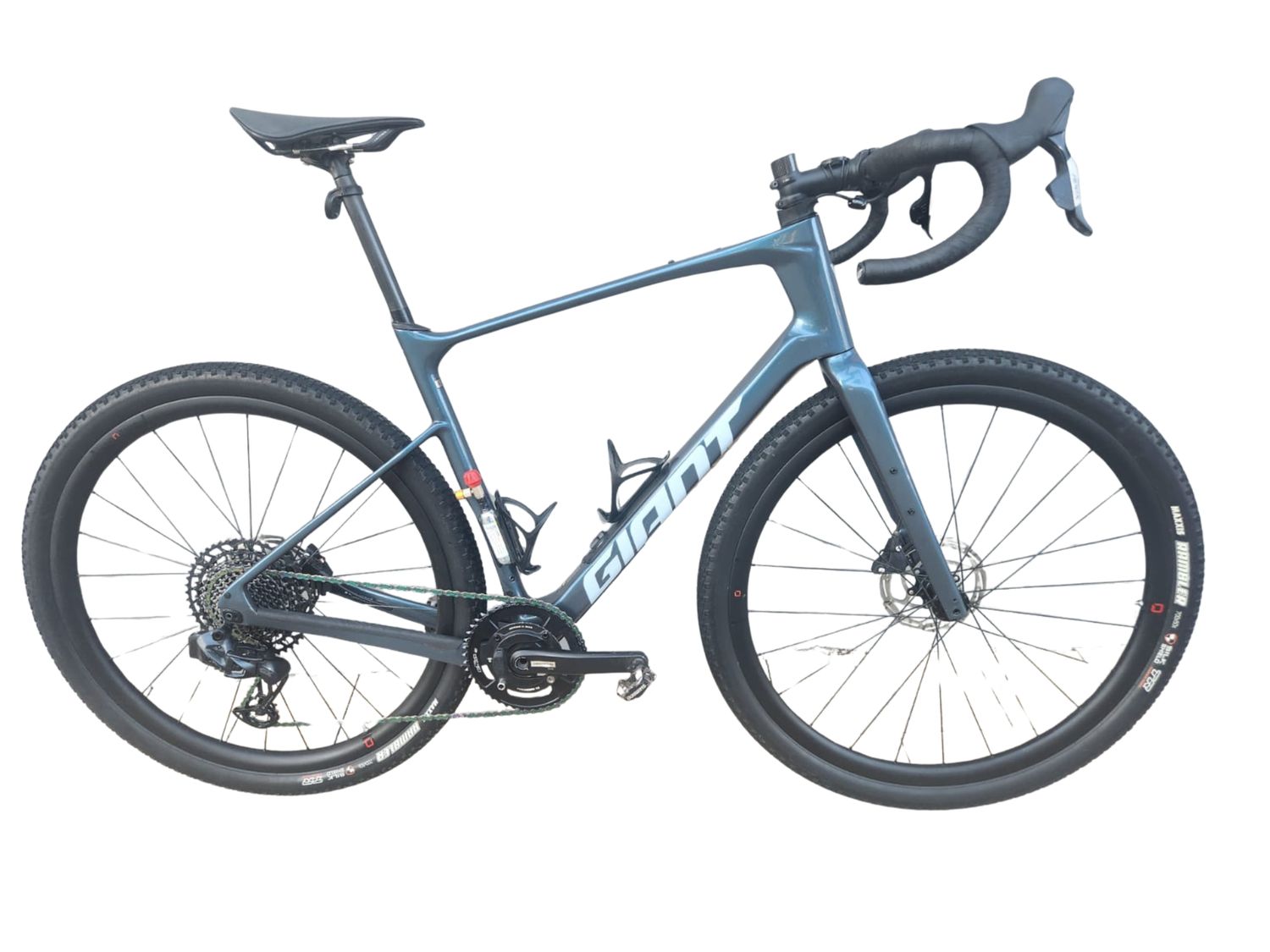

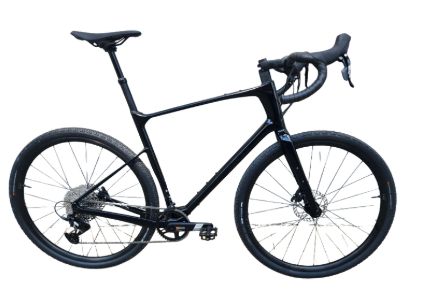

GIANT REVOLT ADV 1 DEMO

SPECIFICATIONS

Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips
Stratus Lite 3.0

Stem
Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

SeatpostPost
Moderne, dropper, 30.9mm, 30mm suspension XS:365mm, S:415mm, M:415mm, M/L:415mm, L:415mm, XL:415mm

Saddle
Giant Grit

Shifters
SRAM Apex 1, 1x12

Rear Derailleur
SRAM Apex XPLR

Brakes
SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers
SRAM Rival 1, left lever dropper switch

Cassette
SRAM PG-1231, 12-speed, 11x44

Chain
SRAM Apex D1

Crankset
SRAM Apex 1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket
SRAM DUB, press fit

Rims
Giant P-X2 Disc wheelset, alloy

Hubs
Giant alloy, 12mm thru-axle

Spokes
Sapim

Tires
Giant Crosscut Grip, 700x45c, tubeless

Extras
Giant 1x chain guide, tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
Max Tire Clearance53mm

Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
