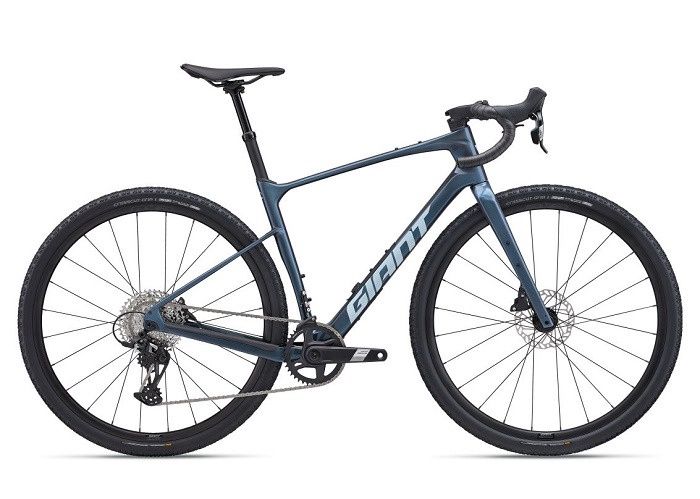

GIANT REVOLT ADV 1

SPECIFICATIONS

• Frame
  Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
• Fork
  Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar
  Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips
  Stratus Lite 3.0
• Stem
  Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost
  Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
• Saddle
  Giant Approach
• Shifters
  SRAM Apex 1, 1x12
• Rear Derailleur
  SRAM Apex XPLR
• Brakes
  SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers
  SRAM Rival 1, left lever dropper switch
• Cassette
  SRAM PG-1231, 12-speed, 11x44
• Chain
  SRAM Apex D1
• Crankset
  SRAM Apex 1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant P-X2 Disc wheelset, alloy
• Hubs
  Giant alloy, 12mm thru-axle
• Spokes
  Sapim
• Tires
  Giant Crosscut Grip, 700x45c, tubeless
• Extras
  Giant 1x chain guide, tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
