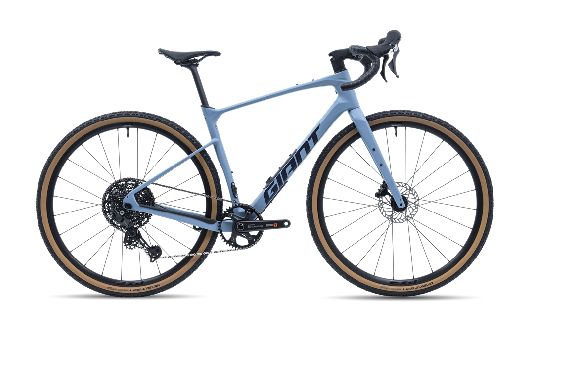

GIANT REVOLT ADV 3 2025

SPECIFICATIONS

Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips
Stratus Lite 3.0

Stem
Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost
Giant D-Fuse, composite, 14mm offset

Saddle
Giant Grit

Shifters
Shimano CUES U6030, 1x11

Front Derailleur
N/A

Rear Derailleur
Shimano CUES U6000

Brakes
Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers
Shimano CUES U6030 hydraulic

Cassette
Shimano CS-LG400, 11x50

Chain
KMC X11

Crankset
Shimano FC-U6030-1, 42t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket
Shimano, press fit

Rims
Giant P-X2 , alloy

Hubs
Giant alloy, 12mm thru-axle

Spokes
Sapim

Tires
Giant Crosscut Grip, 700x45c, tubeless

Extras
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
Max Tire Clearance
53mm

Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
