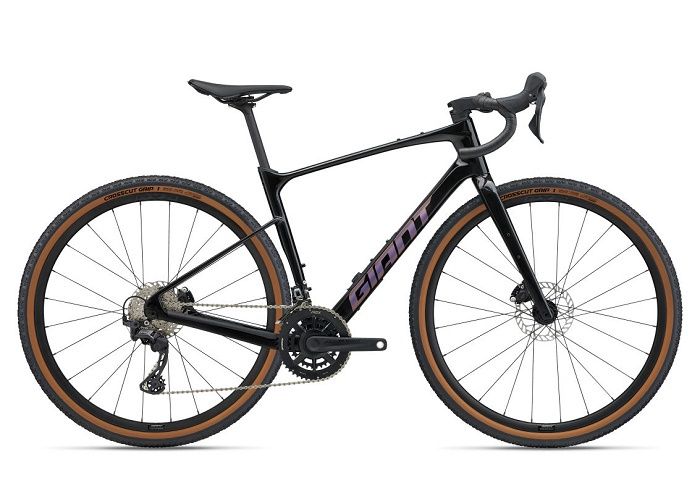

GIANT REVOLT ADV2 2025

SPECIFICATIONS

Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips
Stratus Lite 3.0

Stem
Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost
Giant D-Fuse, composite, 14mm offset

Saddle
Giant Approach

Shifters
Shimano GRX RX-610, 2x12

Front Derailleur
Shimano GRX RX-820

Rear Derailleur
Shimano GRX RX-820

Brakes
Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers
Shimano GRX RX-610 hydraulic

Cassette
Shimano CS-HG710, 12-speed, 11x36

Chain
KMC X12L-1

Crankset
FSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket
FSA BB-AL86, press fit

Rims
Giant P-X2 Disc wheelset, alloy

Hubs
Giant alloy, 12mm thru-axle

Spokes
Sapim

Tires
Giant CrossCut Grip (Tan) or Maxxis Rambler TR (Black), 700x40c, tubeless

Extras
Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag

Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
