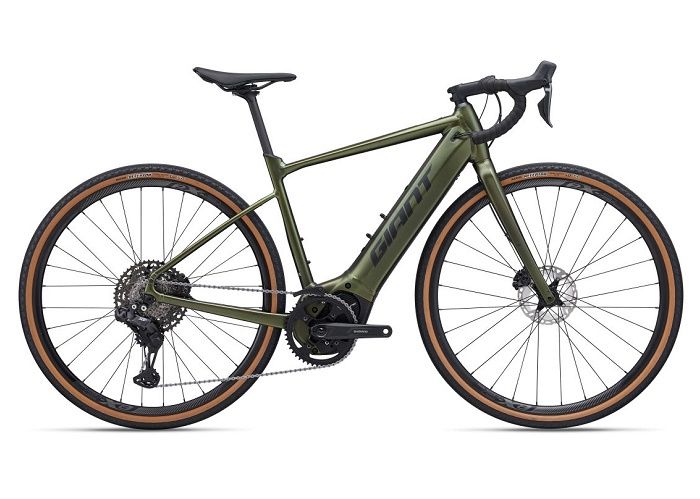

GIANT REVOLT E+ 1

SPECIFICATIONS

Motor
Shimano EP600, 85Nm

Controller
Mode support switch from Shimano GRX STI

Display
Giant RideControl GO, frame-integrated LED consoleOptional wireless ANT+ display

Battery
Giant EnergyPak 500Wh Campact, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible

Charger
Giant EnergyPak 4A smart charger compact, 60% charge in 2:00h

Connectivity
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile

Frame
ALUXX SL aluminium

Fork
Advanced-grade composite,12x100 thru-axle

Handlebar
Giant Contact XR D-Fuse 31.8 alloy 5° back sweep

Grips
Velo cork tape with gel

Stem
Giant Contact 31.8 alloy

Seatpost
Giant D-Fuse SL, composite

Saddle
Giant Approach

Pedals
Aluminium Platform

Shifters
Shimano Ultegra Di2 1x11

Front Derailleur
N/A

Rear Derailleur
Shimano XT Di2

Brakes
Shimano BR-R8170, hydraulic disc, 160mm [F/R]

Brake Levers
Shimano ST-R8170 hydraulic disc

Cassette
Shimano CS-LG700-11, 11-50t

Chain
KMC eGlide NP/BK, e-bike optimised

Crankset
Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring

Bottom Bracket
N/A

Rims
Giant eX 2, Tubeless Ready, 700c Aluminium

Hubs
Giant Performance Tracker Road, Sealed Bearing

Spokes
Sapim E-Lite [r] Race [f]

Tyres
Maxxis Receptor, EXO, 700x40c, Tubeless

Extras
Tubeless kit (liquid, valves, levers, manual, tool)

Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
