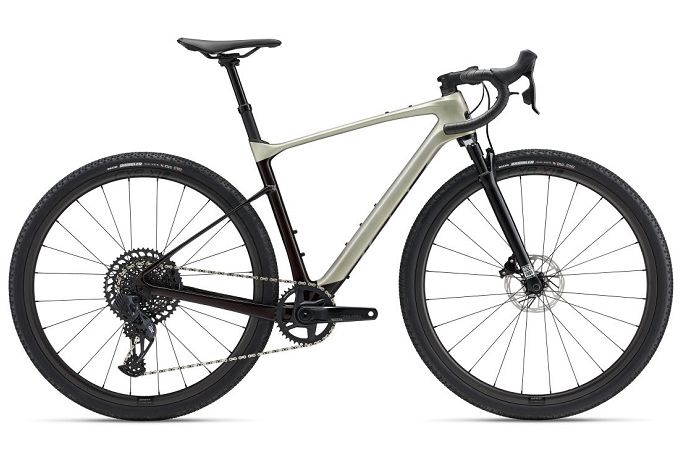

GIANT REVOLT X ADV PRO 1

SPECIFICATION

Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout

Fork
RockShox Rudy Ultimate XPLR, 40mm, Charger Race Day damper 12x100mm thru-axle

Shock
N/A

Handlebar
Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm

Grips
Stratus Lite 3.0

Stem
Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm

Seatpost
Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop

Saddle
Giant Approach SL

Pedals
no pedal [GA, Pan-Eu] platform pedal [GU, GV, GJ] pedal w/toeclip and strap [All other GSC]

Shifters
SRAM Rival eTap AXS, 1x12

Front Derailleur
N/A

Rear Derailleur
SRAM GX Eagle AXS

Brakes
SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm

Brake Levers
SRAM Rival eTap AXS hydraulic

Cassette
SRAM XG-1275, 12-speed, 10x52

Chain
SRAM GX Eagle

Crankset
SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket
SRAM DUB, press fit

Rims
Giant CXR 1 X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm

Hubs
[F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle

Spokes
Sapim Laser

Tyres
Maxxis Rambler, 700x45c, tubeless

Extras
tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
