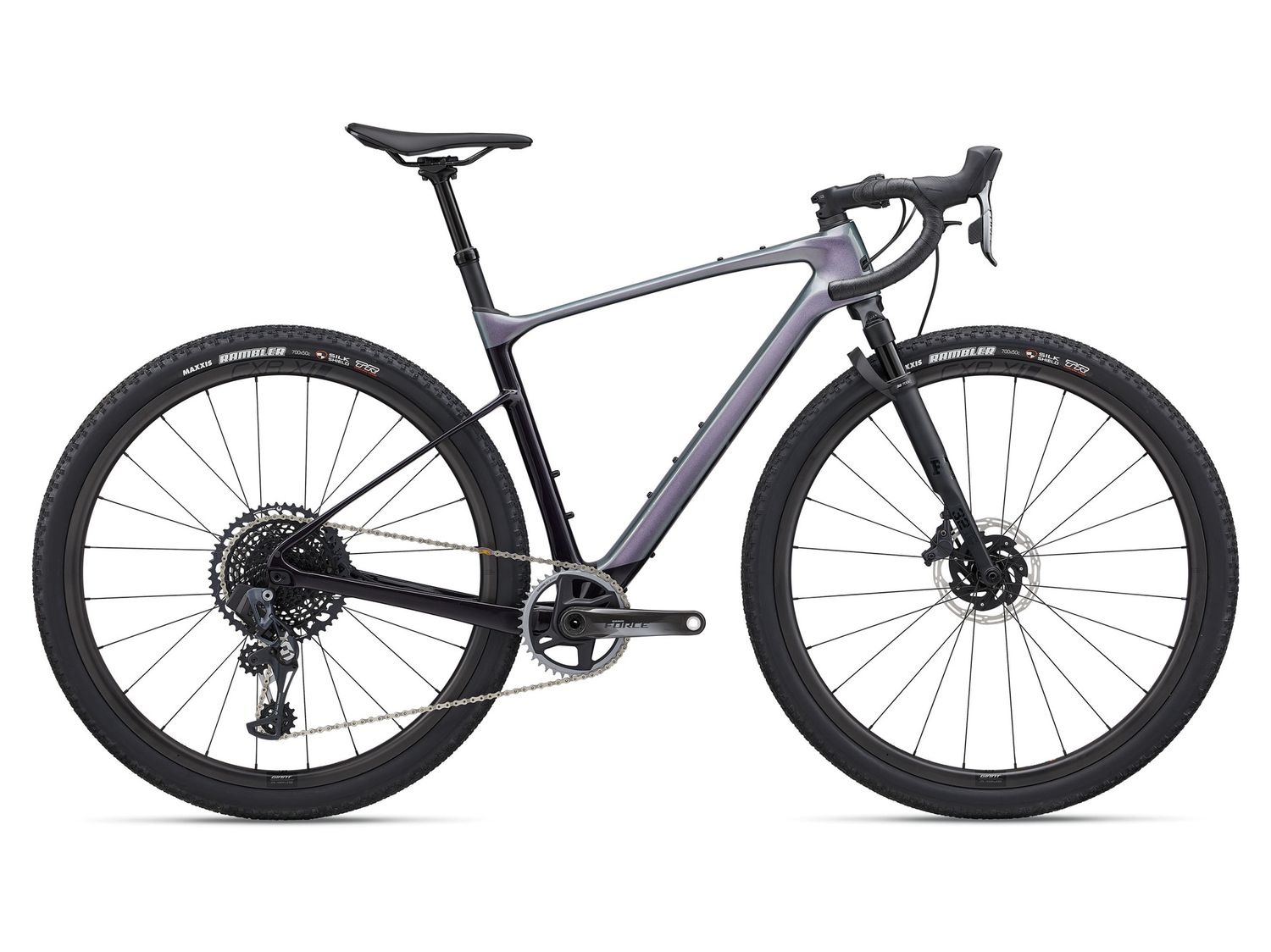

GIANT REVOLT X ADVANCED PRO 0 2023

Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout

Fork : Fox 32 Float TC Performance Elite, 40mm, Fit 4 damper 12x100mm thru-axle

Shock : N/A

Handlebar : Giant Contact SL XR D-Fuse, 16-degree flare XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm

Grips : Stratus Lite 3.0

Stem : Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm

Seatpost : Postmodern, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm
drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop

Saddle : Giant Approach SL

Pedals : N/A

Shifters :SRAM Force eTap AXS, 1x12

Front Derailleur : N/A

Rear Derailleur : SRAM X01 Eagle AXS

Brakes : SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors[F]160mm, [R]160mm

Brake Levers : SRAM Force eTap AXS hydraulic

Cassette : SRAM XG-1295, 12-speed, 10x52

Chain : SRAM X01 Eagle

Crankset : SRAM Force D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket : SRAM DUB, press fit

Rims : Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm

Hubs : F] Giant CXR X alloy, CenterLock, 12mm thru-axle [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle

Spokes : Sapim Laser

Tires : Maxxis Rambler, 700x50c, tubeless

Extras :tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
