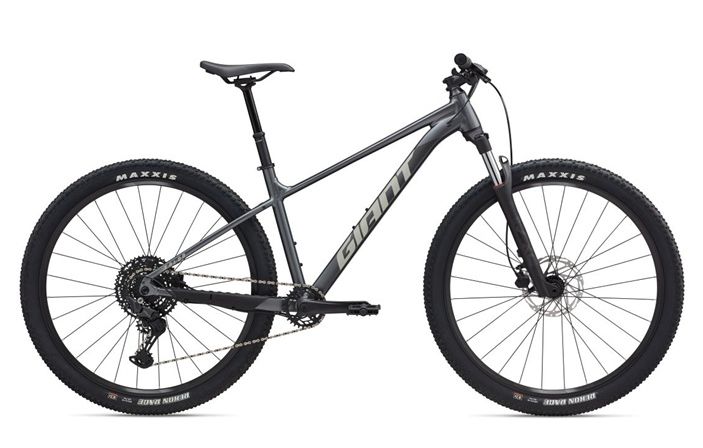

GIANT TALON 29ER 1 2026

SPECIFICATIONS

Frame
ALUXX-grade aluminum, disc

Fork
SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)

Shock
N/A

Handlebar
Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29)

Grips
Giant Sole-O

Stem
Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29)

Seatpost
Giant Contact Switch Core, 30.9 XS: 100x350mm (27.5) S: 100x350mm (27.5) / 100x350mm (29) M: 120x400mm (29) L: 120x400mm (29) XL: 120x400mm (29) XXL: 120x400mm (29)

Saddle
Giant ErgoContact Trail

Pedals
MTB caged

Shifters
Shimano CUES SL-6000, 1x10

Front Derailleur
N/A

Rear Derailleur
Shimano CUES RD-U6000, clutch

Brakes
Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm

Brake Levers
Tektro HDC M275

Cassette
Shimano CUES, CS-LG300, 11x48

Chain
KMC X-11

Crankset
ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29)

Bottom Bracket
cartridge

Rims
Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width

Hubs
[F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive

Spokes
stainless, 14g

Tires
Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead

Extras
2.4" max tire size

Weight
14.59 kg (32 lbs 03 oz) - Size (L)
