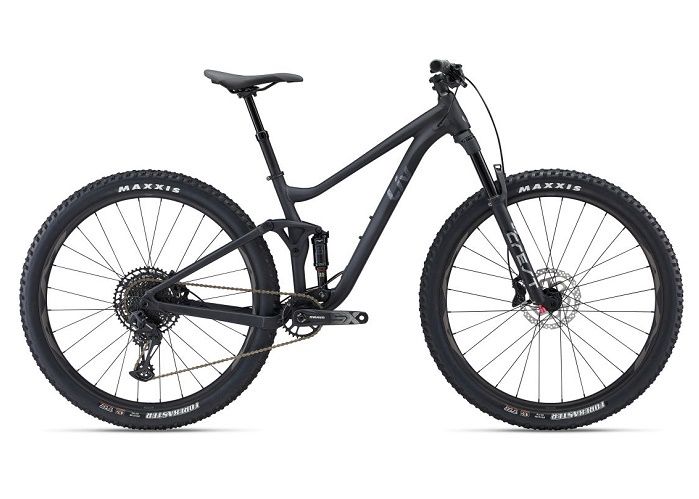

LIV EMBOLDEN 29ER 1

SPECIFICATIONS

• Frame
  ALUXX-Grade Aluminum, 120mm FlexPoint Suspension
• Fork
  Giant Crest 34 SL RCL, 130mm, 15x110
• Shock
  RockShox Monarch R, 184.15/44.45, custom tuned for Liv
• Handlebar
  Giant Connect Trail, Alloy  S:750mm, M:750mm, L:780mm
• Grips
  Giant Sole-O
• Stem
  Giant Contact  S:50mm, M:50mm, L:60mm
• Seatpost
  Giant Contact Switch dropper, remote S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 125mm travel / 30.9 x 395mm
• Saddle
  Liv Sylvia
• Pedals
  platform
• Shifters
  SRAM SX Eagle, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  SRAM SX Eagle
• Brakes
  Tektro M735 [F]180mm, [R]160mm
• Brake Levers
  Tektro M735
• Cassette
  SRAM SX Eagle, 11x50
• Chain
  SRAM SX Eagle
• Crankset
  SRAM SX Eagle DUB, 30t S:170mm, M:170mm, L:170mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant AM30 29" 28H ALLOY PIN FV WITH EYELET DISC BRAKE MATT BLK W/O DECAL
• Hubs
  alloy, loose ball
• Spokes
  Sapim
• Tires
   [F/R] Maxxis Forecaster 29x2.35 WT, EXO, TR, tubeless
• Extras
  tubeless prepared, max tire size 2.4", max chainring size 32t
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
