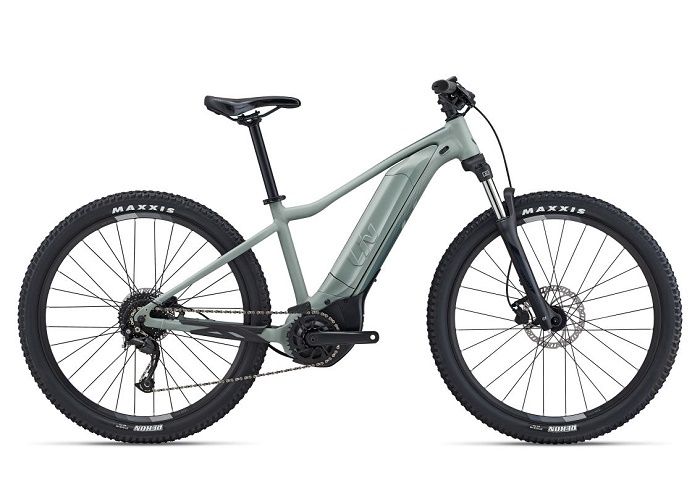

LIV TEMPT E+3

SPECIFICATIONS

Motor
SyncDrive Core, 50Nm, Powered by Yamaha

Sensor
RideControl Dash

Display
RideControl Dash, full color lcd screen

Battery
EnergyPak 400, 36V 11.6Ah Rechargeable Lithium-Ion

Sizes
XS, S, M, L, (XS-S: 27.5, M-L: 29er)

Colors
1 color

Frame
ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA18 kickstand mount

Fork
SR Suntour XCM 32 ATB Coil, NLO, 29"/27.5", 100mm travel, Tapered 1½ - 1⅛" steerer (XS-S: 27.5", M-L: 29")

Shock
n/a

Handlebar
Giant Connect TR Riser 31.8x750mm (XS-S), 780mm (M-L)

Stem
Giant Contact

Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium

Saddle
Liv Sport

Pedals
Aluminum Platform

Shifters
Shimano Altus

Front Derailleur
n/a

Rear Derailleur
Shimano Alivio, M3100, 9-speed

Brakes
Tektro HD-M286, hydraulic disc, 180mm[F], 160mm[R]

Brake Levers
Tektro HD-M286

Cassette
Shimano CS-HG200, 11-36T

Chain
KMC e.9 Sport, e-bike optimized

Crankset
FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T

Bottom Bracket
n/a

Rims
Liv, GX03V, 27.5 / 29er, Alluminum(XS-S: 27.5, M-L: 29er)

Hubs
Giant eTracker Sport, [F] 9mm QR [R] 135mm QR

Spokes
Stainless steel

Tires
Maxxis Rekon 27.5x2.4" / 29r x 2.4" Wire Bead 60TPI(XS-S: 27.5, M-L: 29er)

Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
