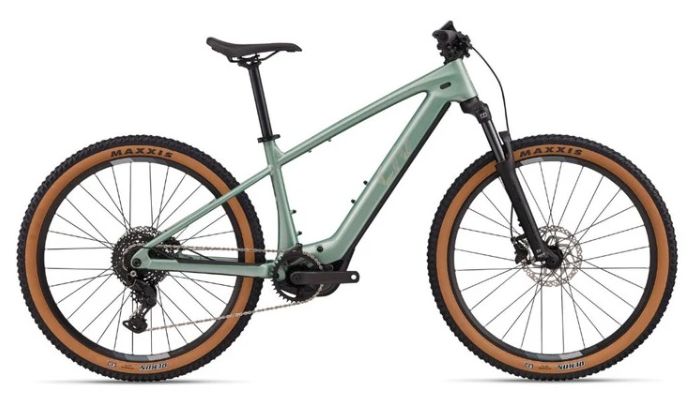

LIV TEMPT E+

SPECIFICATIONS

Motor
Giant SyncDrive Sport 2, 75Nm, PedalPlus 6-sensor technology

Controller
Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels, USB-C (10W)

Display
Giant RideControl Dash 2, high-angle visibility, full color LCD display

Battery
Giant EnergyPak Smart 430Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible

Charger
Giant EnergyPak smart charger 4A

Connectivity
Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile

Frame
ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA40 kickstand mount

Fork
SR Suntour XCM ATB DS coil 29" 100mm travel 15x110 AH axle

Shock
n/a

Handlebar
Giant Connect TR Riser 31.8x690~750mm

Grips
Giant Sole-O Grip

Stem
Giant Contact

Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium

Saddle
Liv Ergo Trail ESG

Pedals
Anti-slip Platform

Shifters
Shimano Cues

Rear Derailleur
Shimano Cues 9-speed

Brakes
Shimano MT200, hydraulic disc, 180mm [F/R]

Brake Levers
Shimano MT-200

Cassette
Shimano Cues, 11-41T, 9-speed

Chain
KMC eGlide NP/BK, e-bike optimized

Crankset
Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms, (XS-S: 160mm, M-L: 165mm)

Bottom Bracket
-

Rims
Liv, GX03V, 27.5 / 29, Alluminum (XS-S: 27.5, M-L: 29)

Hubs
eTracker boost alloy 6-bolt disc 15x110mm [F] 12x148mm [R]

Spokes
Stainless steel

Tires
Maxxis Rekon Tanwall XS-S: 27.5x2.4" / M-L: 29 x 2.4" Wire Bead 60TPI

Lighting
-

Carrier
-

Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
