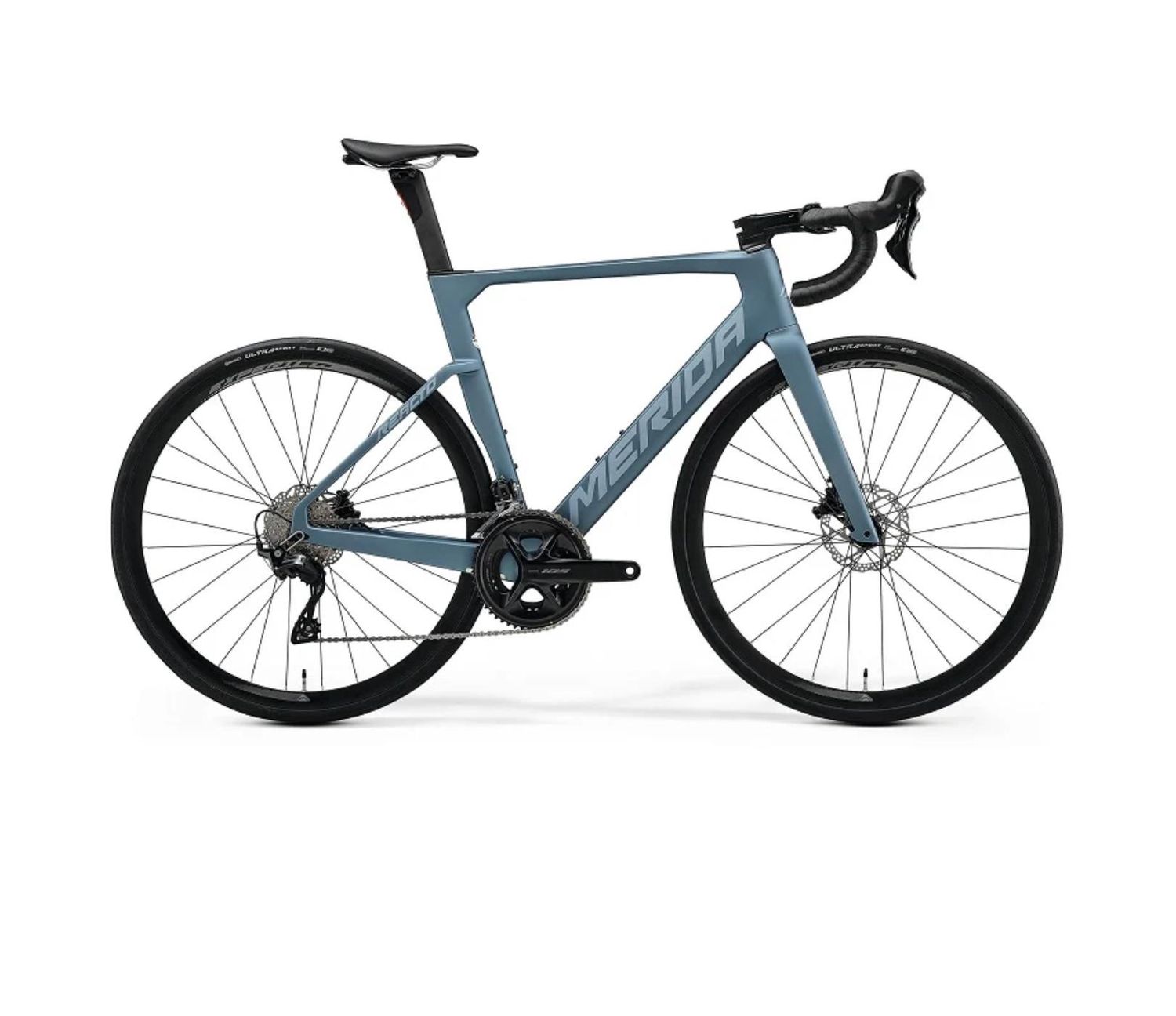

MERIDA REACTO 4000

Key Features:

- Lightweight CF3 Carbon Aero Frame
- Reacto CF3 Carbon Fork
- Shimano 105 Disc Drivetrain
- Shimano 105 Hydraulic Brakes
- Merida Expert CW Rims
- Continental Ulra Sport III 28c Tyres

SPECIFICATIONS

Frame:

Reacto CF3 IV
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
BB86,5 bottom bracket standard

Fork:

Reacto CF3 IV Disc
material: carbon
700x30C max. wheelsize

Rear Derailleur:

Shimano 105 GS

Front Derailleur:

Shimano 105

Rotors:

Shimano RT54
160mm

Shifters:

Shimano 105 disc

Brake Lever:

Shimano 105

Brakes:

Shimano 105 Hydraulic Disc

Crank:

Shimano 105
52-36 Teeth

Front Hub:

Shimano HB-TC500
100x12mm width front hub
28 spoke holes
Centerlock

Rear Hub:

Shimano HB-TC500-HL
12-142mm width rear hub
28 spoke holes
Centerlock

Spokes:

 Double Butted Black stainless

Handlebar Stem:

Merida Expert SL 2PII
material: aluminium
-9? stem angle
90 mm-XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

Handlebar:

Merida Expert CW
material: aluminium
380mm (XXS-XS)
400mm (M-L-XL)

Headset:

Merida Team SL
VP-MRBHB (OP203 Neck)

Seat Post:

Merida Team CW
Aero shape
15mm setback
Carbon

Saddle:

Merida Expert SL
6% recycled and 23% nature material
V-mount

Rim:

Merida Expert CW
19mm inner width
30mm height
material: aluminium
Tubeless ready (tubeless tape and valves not included)

Freewheel:

Shimano 105 R7101
11-34 Teeth
12 Speed

Tyres:

Continental Ultra Sport III
700 x 28c
Fold
