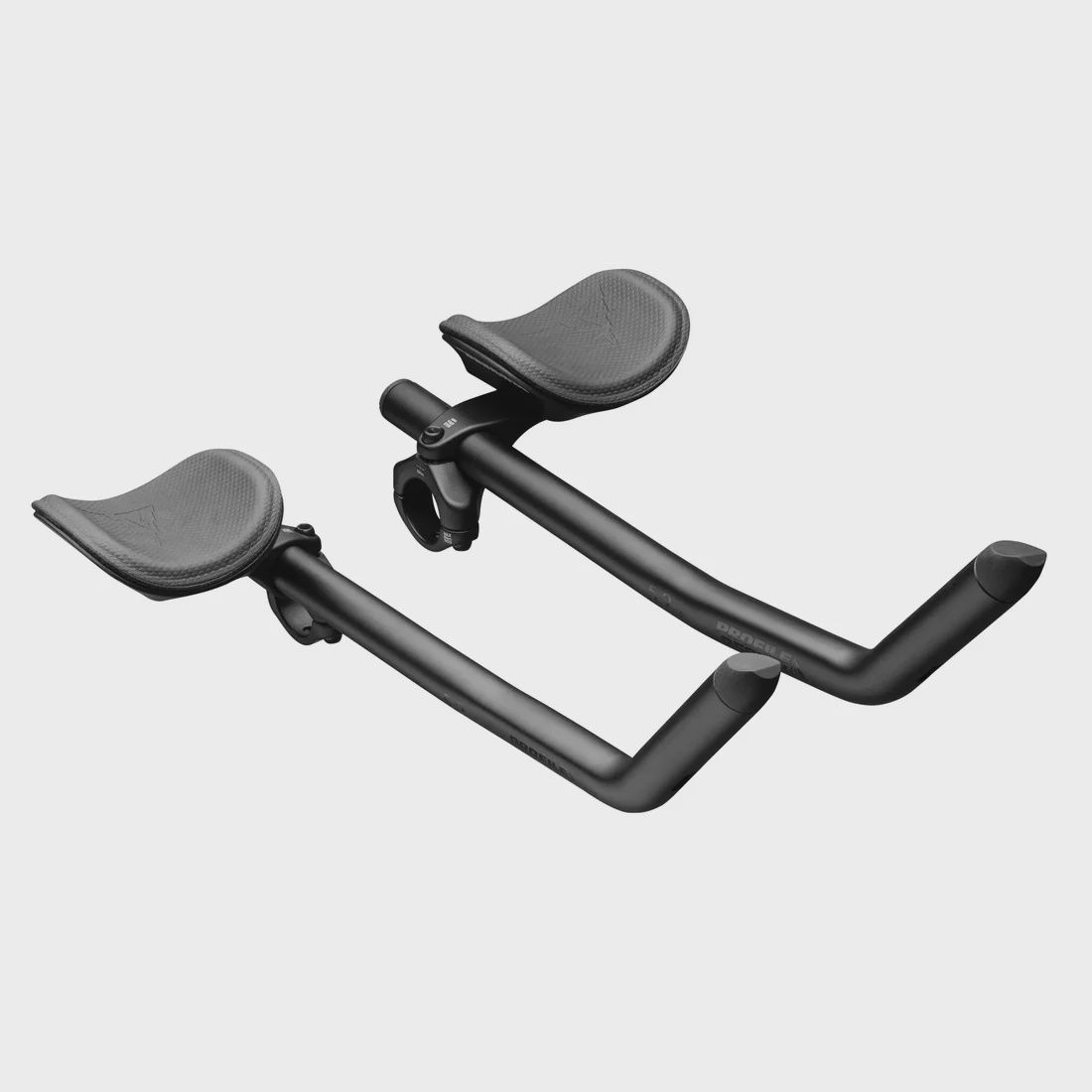

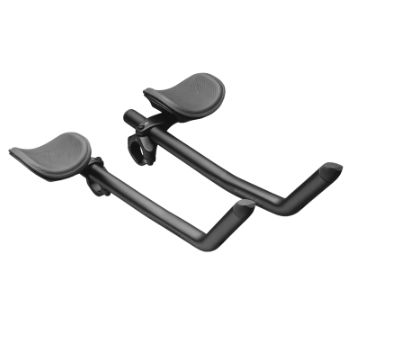

PROFILE DESIGN H/BAR TRI SONIC ERGO 52a AEROBAR

Tech Specs

• Bracket: Sonic
• Clamp Diameter: 31.8mm or (26.0 with Shim kit- Shim Kit is sold separately)
• Armrest:  Ergo / 10mm Pads
• Armrest Width: 124mm to 290mm in 18.5mm steps (with Extensions at 100mm)
• Armrest Offset: -70mm to -17.5mm in 7.5mm steps
• Armrest Stack: The minimum is 60mm and the bracket is compatible with our existing risers which add up to 130mm stack with (70mm of spacers added)
• Construction: 6061-T6 aluminum, pre-drilled for bar-end shifter cable routing
• Extension Length: 400mm
• Extension Angle: 52 Degrees
• Extension Rise: 87mm (bottom to top)
• Extension Offset: 15mm total
• Outer Diameter: 22.2mm
• Inner Diameter: 19.2mm
• Shifter Compatibility: Electronic or Mechanical
• Color: Anodized Matte Black
• Weight: 564g
