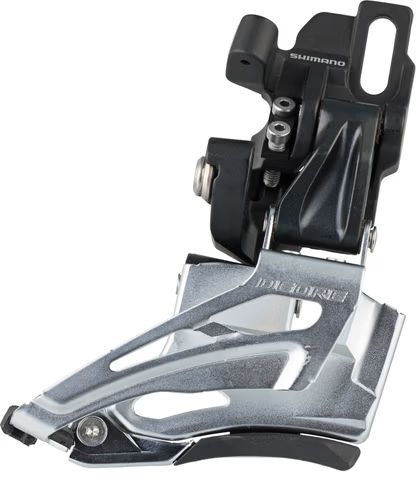

SHIMANO FD-M618 2X10 DIRECT MOUNT

Specifications:

Series:

Deore M610

Application:

All Mountain, Cross Country

Gearing:

2x (combined w/ 10-speed)

Chainstay Angle:

66-69°

Chainline:

48.8 mm

Chainring Size (max.):

36-38 teeth

Capacity:

14-tooth

Cable Routing:

top-pull, down-pull, dual-pull

Movement:

top-swing, down-swing

Mount:

high clamp, low clamp, E-type* (bottom bracket mount, low-direct), direct mount (high-direct)

Clamp Diameter:

34.9 mm w/ adapter 31.8 mm / 28.6 mm

Compatibility:

HG-X 10-speed chains
