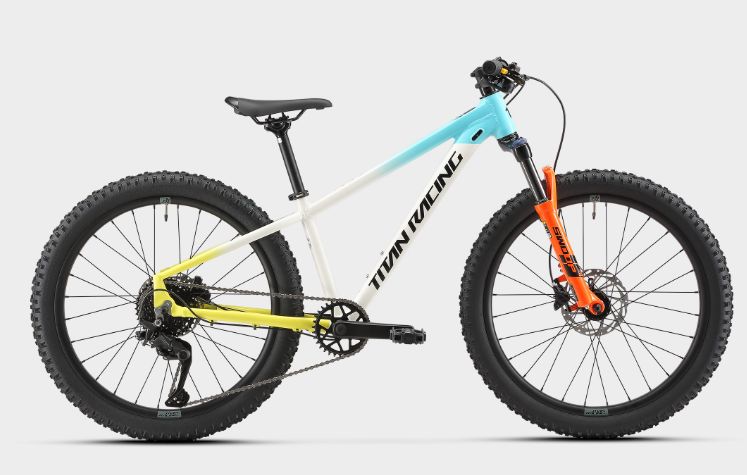

TITAN DRONE JR 24 TEAM

SPECIFICATIONS

FRAME
TR DRONE JR 24" 6061 HYDROFORMED ALLOY DISC FRAME

SIZE
24″

FORK
SWOOP - CH-595 AIR 80MM

FORK FENDER
N/A

REAR SHOCK
N/A

CHAINWHEEL
PROWHEEL C10Y-NW 32T

DERAILLEUR FRONT
NIL

DERAILLEUR REAR
SHIMANO CUES RD-U4000

SHIFTER LEFT
NIL

SHIFTER RIGHT
SHIMANO SL-U4000-9R (W/O OPTICAL)

CHAIN
SHIMANO CUES 9 SPEED

FREEWHEEL
SUGEK 11 SPEED 11-42T

BB SET
CH-52

SPEED
1 X 9 SPEED

BRAKE LEVER
SHIMANO MT-201

BRAKE FRONT
SHIMANO MT-201 WITH 160MM ROTOR

BRAKE REAR
SHIMANO MT-UR300 FM WITH 140MM ROTOR

BRAKE CABLE
BLACK

WHEELS
RIMS

TR MD16 32H 24"
HUB FRONT

TR ALLOY Q/R
HUB REAR

TR ALLOY Q/R
SPOKES

STEEL
TUBE

24″ FV
TYRES

INNOVA 24" X 2.25"
COMPONENTS

GRIP
TR JUNIOR GRIP

HANDLEBAR
TR JUNIOR FLAT H/BAR

HANDLEBAR STEM
TR H/BAR STEM

HEADSET
FP-H871 BALL BEARING

SPACER
10MM X 1 PCS

SADDLE
SR 7040J

SEAT POST
TR JUNIOR 27.2MM

SEAT CLAMP
PROMAX 319 Q 28.6MM

KICKSTAND
N/A

PEDAL
KIDS

WEIGHT
BIKE WEIGHT
